麥迪森超高真空高壓線纜選型

發布時間：2024-05-08 16:54:50 人氣：2479

本站提供超高真空線纜，高壓線纜，壓線鉗等，型號齊全，如本頁未找到您所需要的產品請聯系我們 15301310116（微信同號）

【隆重介紹】為滿足不同客戶需求，麥迪森精心推出超高真空高壓線纜選型一覽表，提供各種規格線纜詳細的性能參數，為客戶提供全面且專業的選型指導。

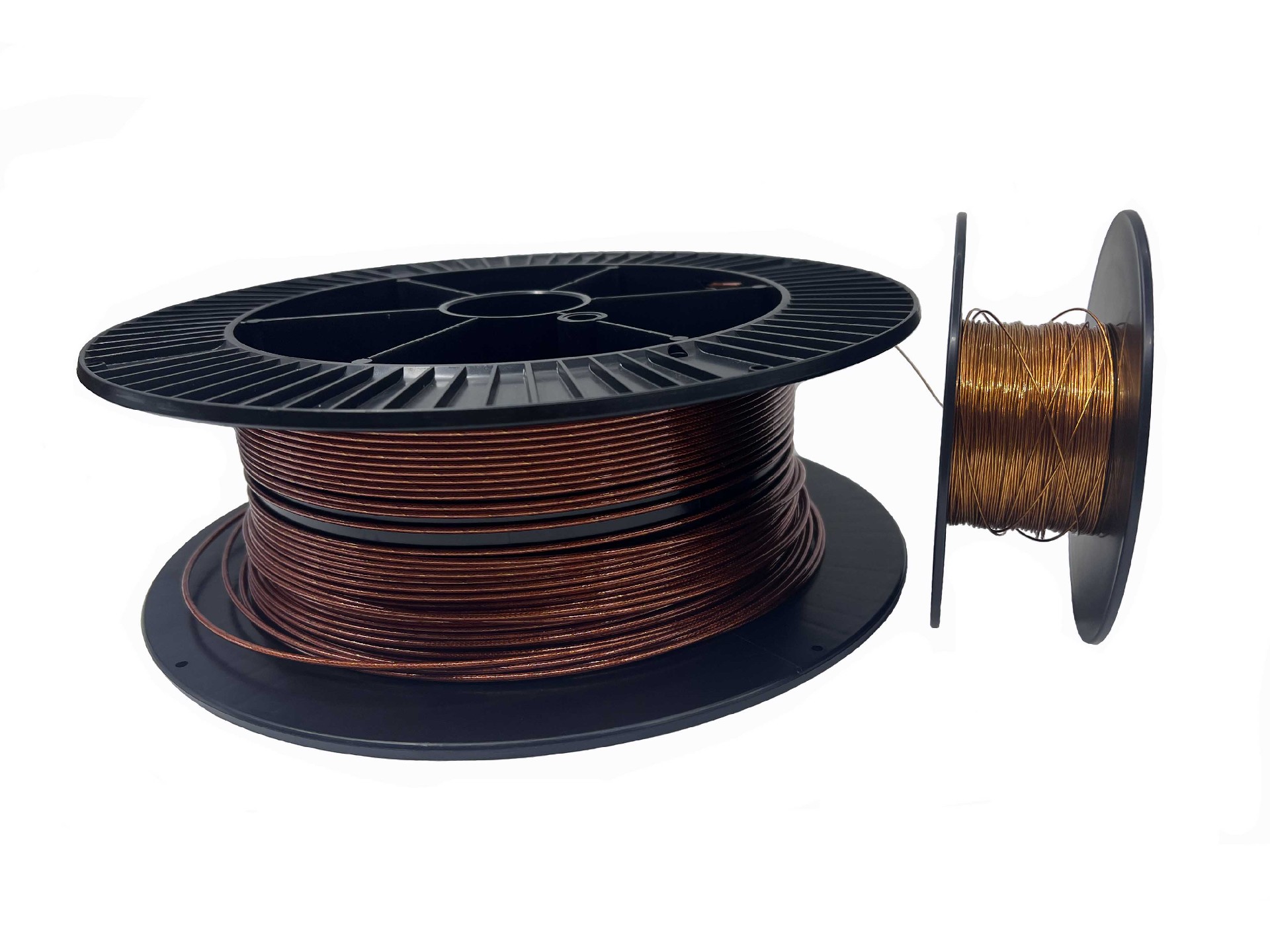

麥迪森超高真空高壓線纜

超高真空高壓線纜選型表

麥迪森超高真空高壓線 MADISON UHV, HIGH VOLTAGE CABLE
北京麥迪森科技電話：15301310116（微信同號）網址：www.cqgutian.com
S/N	Type 1)	Construction	AWG	Conductor Diam.mm	Overall Diam max. mm	Max.Voltage in vacuum 2) V DC	Max. Current 3) A	Conductor area mm2
1	MT161-KAPM-025-HV7.5K	Multi Strand silver plated wire,7x 0.08mm	32	0.24	0.4	7,500	0.5	0.04
2	MT161-KAPM-035-HV7.5K	Multi Strand silver plated wire,7x 0.12mm	28	0.35	0.5	7,500	1	0.08
3	MT161-KAPM-060-HV7.5K	Multi Strand silver plated wire, 19x 0.127mm	24	0.64	0.75	7,500	3	0.24
4	MT161-KAPM-075-HV7.5K	Multi Strand silver plated wire,19x 0.15mm	21	0.75	0.95	7,500	5	0.34
5	MT161-KAPM-100-HV7.5K	Multi Strand silver plated wire,19x 0.2mm	18	1	1.22	7,500	9	0.61
6	MT161-KAPM-130-HV7.5K	Multi Strand silver plated wire,19x 0.25mm	16	1.3	1.5	7,500	12	0.97
7	MT161-KAPM-200-HV7.5K	High flex. silver plated wire, 455x 0.07mm	12	1.9	2.15	7,500	20	1.75
8	MT161-KAPM-410-HV15K	High flex. silver plated wire, 133x 0.287mm, High Voltage	8	4.6	4.8	15,000	70	8.4
9	MT162-PEEKM-035-HV10K	Multi Strand silver plated wire, 7x 0.12mm	27	0.35	0.7	10,000	1	0.08
10	MT165-KAPM-100-HV30K	Multi Strand silver plated wire,7x 0.320mm	20	1	2.3	30,000	8	0.75
11	MT165-KAPM-050-HV10K	Multi Strand silver plated wire,7x 0.160mm	26	0.5	1.57	10,000	3	0.16
12	MT165-KAPW-040-HV7K	Silver plated copper wire, wrapped quality	26	0.4	0.9	7,000	4	0.14
13	MT165-KAPW-130-HV3K	Silver plated copper wire, wrapped quality	16	1.3	1.5	3,000	15	1.5
14	MT165-KAP-100-HV10K	Plain copper wire, dipped	18	1	1.1	10,000	10	1
15	MT165-KAP-170-HV12K	Plain copper wire, dipped	14	1.7	1.85	12,000	17	2.5

注：1. KAPM type is flexible wire. KAP type is not flexible. “KAP” means Kapton insulation. “M” means multi-strand wire. “PEEK” means Polyetheretherketone.

2. Pressure < 1x 10-3 mbar. Max. Voltage in air is significant lower. We does not recommend these wires for air use according these data sheet.

3. Max. Current depends strongly on use, specially for vacuum applications. if a coil is formed, a temperature test should be done. As an approximation,

1/3 of the given current can be assumed to start with. As the heat dissipation is very low in vacuum, the cables will get hot by continuous use at the given values.
